CH ELM (R4)
1.7.0 - release Switzerland flag

This page is part of the Observations of notifiable communicable infectious diseases (v1.7.0: Release) based on FHIR (HL7® FHIR® Standard) R4. This is the current published version. For a full list of available versions, see the Directory of published versions

Profiles

Overview

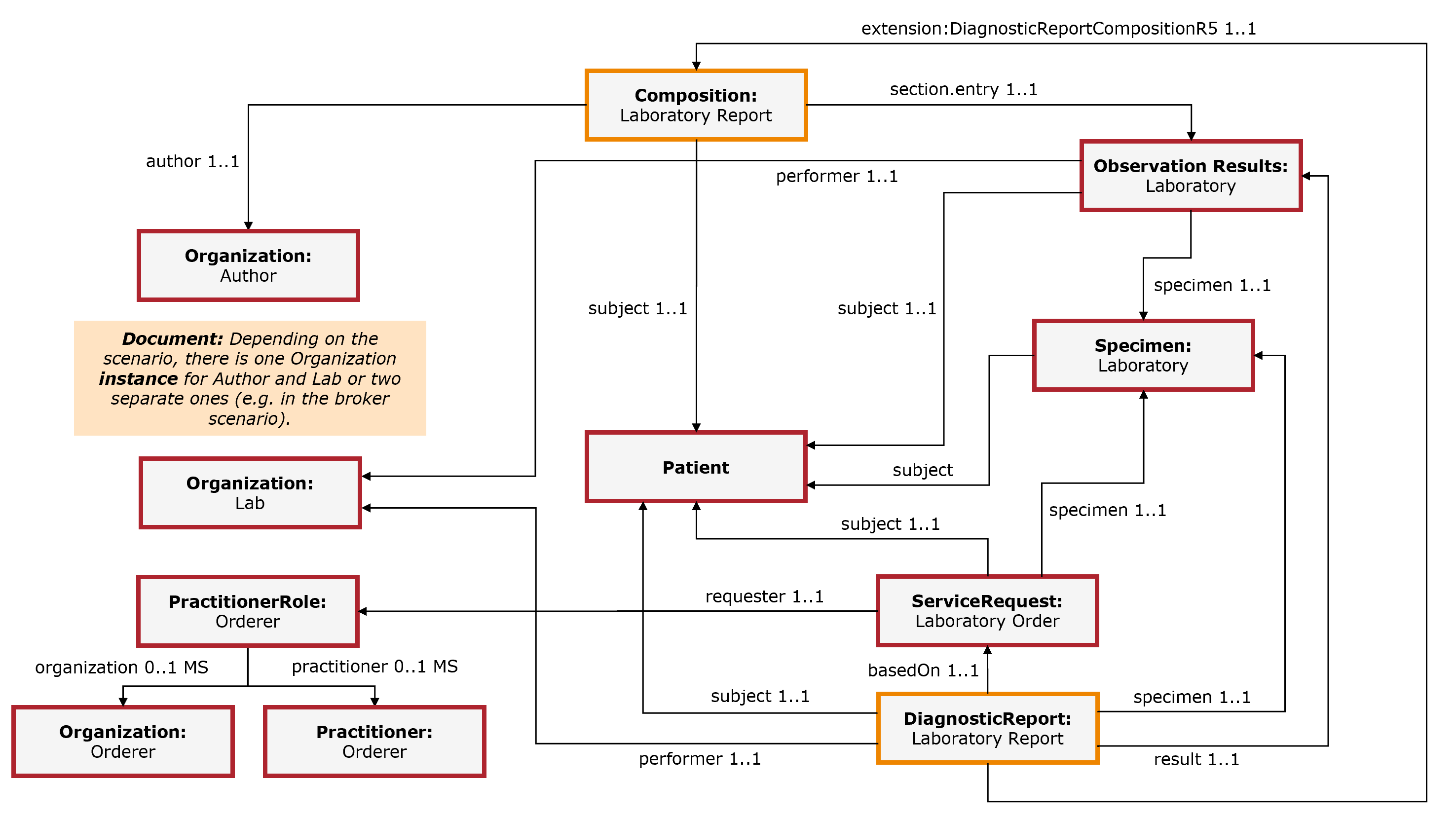

That figure illustrates the resources and their references to each other for which profiles are defined to represent the CH ELM laboratory report.

Fig. 6: Resource Overview

Fig. 6: Resource Overview

Resource Profiles

  • CH ELM Composition: Laboratory Report

    This CH ELM base profile constrains the Composition resource for the purpose of laboratory test reports.

  • CH ELM DiagnosticReport: Laboratory Report

    This CH ELM base profile constrains the DiagnosticReport resource for the purpose of laboratory test reports.

  • CH ELM Document: Laboratory Report

    This CH ELM base profile constrains the Bundle resource for the purpose of laboratory test reports.

  • CH ELM Document: Laboratory Report (strict)

    CH ELM profile for the Bundle resource with a stricter validation mechanism than the base profile via binding strength reinforcement for the leading code element and checking patient name requirements if possible.

  • CH ELM Observation Results: Laboratory

    This CH ELM base profile constrains the Observation resource for the purpose of laboratory test reports.

  • CH ELM Observation Results: Laboratory (strict)

    CH ELM profile for the Observation resource with a stricter validation mechanism than the base profile via binding strength reinforcement for the leading code element.

  • CH ELM Observation Results: Ratio

    Ratio as observation result, see also 'Guidance - Laboratory Result'

  • CH ELM Observation Results: Text

    Text as observation result, see also 'Guidance - Laboratory Result'

  • CH ELM Observation Results: Viral Load

    Viral Load as observation result, see also 'Guidance - Laboratory Result'

  • CH ELM Organization: Author

    This CH ELM base profile constrains the Organization resource for the author of the laboratory report.

  • CH ELM Organization: Lab

    This CH ELM base profile constrains the Organization resource for the reporting laboratory.

  • CH ELM Organization: Orderer

    This CH ELM base profile constrains the Organization resource for the orderer.

  • CH ELM Patient

    This CH ELM base profile constrains the Patient resource for the purpose of laboratory orders and test reports.

  • CH ELM Patient HIV

    Patient representation for HIV

  • CH ELM Patient Initials

    Patient representation via Initials

  • CH ELM Patient VCT

    Patient representation via a VCT Code

  • CH ELM Practitioner: Orderer

    This CH ELM base profile constrains the Practitioner resource for the orderer.

  • CH ELM PractitionerRole: Orderer

    This profile constrains the PractitionerRole resource for the orderer:

    • orderer organization and/or practitioner must be present
    • a postalCode and city must be present from organization and/or practitioner
  • CH ELM ServiceRequest: Laboratory Order

    This CH ELM base profile constrains the ServiceRequest resource for the purpose of laboratory orders.

  • CH ELM Specimen: Laboratory

    This CH ELM base profile constrains the Specimen resource for the purpose of laboratory test reports.

  • DocumentReference for Publish Response

    A profile on the DocumentReference resource for the publication response:

    • must be status current
    • must have an identifier
  • DocumentReference for sending the report

    A profile on the DocumentReference resource with publication constraints:

    • must be status current
    • must have an identifier
    • uses attachment.url to carry the document as a contained resource
    • validation according to http://fhir.ch/ig/ch-elm/StructureDefinition/ch-elm-document
  • DocumentReference for sending the report with strict validation

    A profile on the DocumentReference resource with publication constraints:

    • must be status current
    • must have an identifier
    • uses attachment.url to carry the document as a contained resource
    • strict validation according to http://fhir.ch/ig/ch-elm/StructureDefinition/ch-elm-document-strict
  • Find Document References Response message

    A profile on the Find Document References Response message

    • Data Type Profiles

  • CH ELM CodeableConcept
  • CH ELM Coding
  • Human Name
  • IDN Identifier
